MikroTik CCR2116-12G-4S+ Cloud Core Router (16-Core 10G Enterprise Router)

Product Overview

The MikroTik CCR2116-12G-4S+ is a high-performance Cloud Core Router engineered for ISPs, data centers, and enterprise networks that demand extreme throughput and advanced routing capabilities. Powered by a 16-core ARM CPU (2.0 GHz) and running RouterOS v7, it delivers massive performance improvements, especially in BGP routing, firewall processing, and QoS operations.

With 12 Gigabit Ethernet ports, 4×10G SFP+ uplinks, and dual redundant power supplies, the CCR2116 is designed for high-speed aggregation, backbone routing, and mission-critical deployments.

Key Features

• 16-Core ARM CPU (2.0 GHz) — Exceptional processing power for heavy routing workloads
• 12 × Gigabit Ethernet Ports — High-density LAN connectivity
• 4 × 10G SFP+ Ports — Ultra-fast fiber uplinks for backbone networks
• 16 GB RAM — Handles large routing tables and complex configurations
• Layer 3 Hardware Offloading — Enables near wire-speed routing performance
• RouterOS v7 (Level 6 License) — Advanced routing, firewall, VPN, MPLS, and QoS features

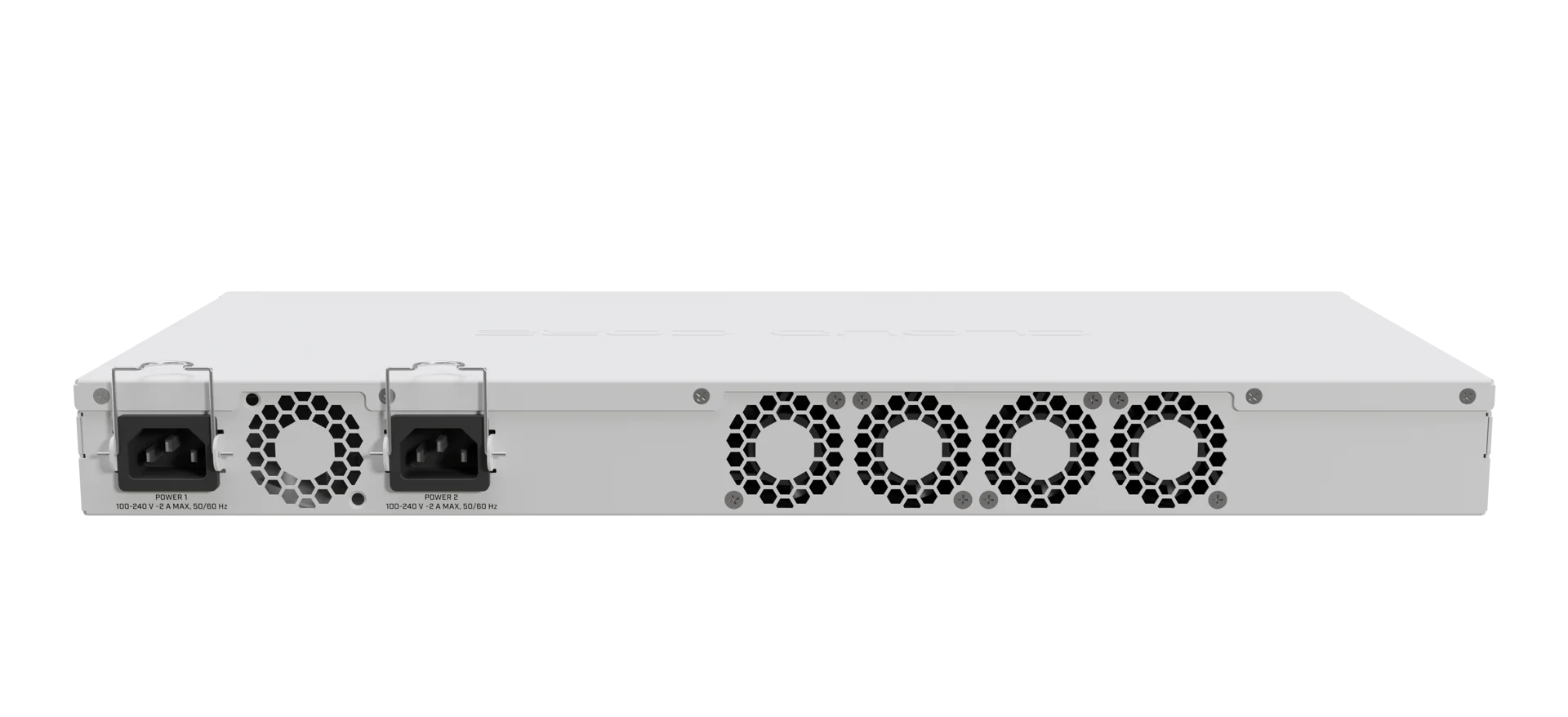

• Dual Redundant Power Supplies — Ensures uptime and reliability
• M.2 PCIe Slot — Supports SSD for storage, logging, or containers
• Rackmount (1U) Design — Suitable for data centers and network racks

Technical Specifications

Performance & System

• CPU: 16-core ARM64 (AL73400) @ 2.0 GHz
• RAM: 16 GB DDR4
• Storage: 128 MB NAND + M.2 slot
• Operating System: RouterOS v7 (Level 6 license)
• Switch Chip: Marvell 98DX3255

Interfaces

• Ethernet Ports: 13 × 10/100/1000 Mbps (12 switched + 1 management)
• SFP+ Ports: 4 × 10G
• Console Port: RJ45 serial

Power & Cooling

• Power Inputs: Dual AC (100–240V)
• Max Power Consumption: ~83W
• Cooling: 4 internal fans

Physical

• Form Factor: 1U Rackmount
• Dimensions: 443 × 199 × 44 mm
• Operating Temperature: -20°C to +60°C

Key Benefits

• Extreme Routing Performance: Handles heavy BGP, firewall, and QoS workloads efficiently
• 10G-Ready Infrastructure: Ideal for high-speed fiber backbones and aggregation
• Hardware Acceleration: L3 offloading ensures maximum throughput
• Enterprise Reliability: Dual PSU design minimizes downtime
• Scalable Networking: Suitable for growing ISPs and enterprise networks
• Future-Proof Design: Supports modern high-speed networking demands

Use Cases

• ISP Core & Edge Routing
• Enterprise Core Networks
• Data Center Aggregation
• High-Speed Fiber Backbone Deployments
• Large-Scale VPN & MPLS Networks

What’s in the Box

• **MikroTik CCR2116-12G-4S+ Router
• 2 × Power Cables
• Rackmount Kit
• Rubber Feet
• Quick Start Guide

Useful Links

• Official Product Page (MikroTik)
  https://mikrotik.com/product/ccr2116_12g_4splus
• User Manual & Documentation
  https://help.mikrotik.com/docs/
• Retail Specs & Availability (B&H Photo)
  https://www.bhphotovideo.com/c/product/1872031-REG/mikrotik_ccr2116_12g_4s_12_port_gigabit_managed.html
• Kenya Availability Example
  https://www.dataworld.co.ke/product/mikrotik-cloud-core-router-ccr2116-12g-4s-16-core-12x-gigabit-4x-sfp/

Why Choose the CCR2116-12G-4S+?

The MikroTik CCR2116-12G-4S+ is a next-generation enterprise router that combines massive multi-core processing power with 10G connectivity and hardware acceleration. It is ideal for organizations that require high throughput, reliability, and scalability, making it one of the best solutions for modern ISP and enterprise network infrastructures.
